A spongy or unresponsive clutch pedal can be incredibly frustrating, turning a smooth drive into a jerky, unpredictable experience. This often signals air trapped within the hydraulic clutch system, a common issue that can be resolved by bleeding the master cylinder. While the task might seem daunting at first, bleeding a master clutch cylinder is a relatively straightforward procedure that can be accomplished with a few basic tools and a bit of patience. Successfully performing this maintenance task will not only restore your clutch’s proper function, providing a smoother, more controlled driving experience, but it will also prevent potential damage to other clutch components down the line. Moreover, understanding the process empowers you to take control of your vehicle’s maintenance, saving you a trip to the mechanic and putting you back in the driver’s seat with confidence.
Before beginning the bleeding process, gather the necessary tools, including a wrench that fits the bleeder valve on the slave cylinder, a clear plastic hose that snugly fits over the bleeder valve nipple, a container to collect the old brake fluid, and fresh brake fluid that matches your vehicle’s specifications. Furthermore, it’s highly recommended to have a helper assist you with this process. Once you have your tools assembled, locate the master cylinder, typically found in the engine compartment, near the firewall. Subsequently, clean the area around the master cylinder reservoir cap to prevent contaminants from entering the system. Next, check the brake fluid level in the reservoir and top it off if necessary, ensuring you use the correct type of fluid. Afterward, carefully attach the clear plastic hose to the bleeder valve on the slave cylinder, routing the other end into the container. This setup will allow you to observe the air bubbles escaping the system and prevent brake fluid from spilling and potentially damaging surrounding components. Remember to consult your vehicle’s service manual for specific instructions and diagrams related to your particular make and model.
With the preparations complete, you can begin the bleeding process. First, have your assistant depress the clutch pedal slowly and hold it down. Then, carefully open the bleeder valve on the slave cylinder, allowing air and old brake fluid to escape through the hose and into the container. While the bleeder valve is open, your assistant should feel the clutch pedal sink slightly. Next, close the bleeder valve before your assistant releases the clutch pedal. Subsequently, have your assistant slowly release the clutch pedal and return it to its resting position. Repeat this process several times, checking the fluid level in the master cylinder reservoir and topping it off as needed. Continue bleeding the system until no more air bubbles emerge from the bleeder valve and the clutch pedal feels firm and responsive. Finally, tighten the bleeder valve securely, remove the hose, and double-check the brake fluid level in the reservoir one last time. Thoroughly clean up any spilled brake fluid and dispose of it properly. By following these steps meticulously, you’ll not only restore your clutch’s functionality but also gain a deeper understanding of your vehicle’s hydraulic system.
Locating the Master Cylinder
Before you begin the bleeding process, you’ll need to find your master cylinder. It’s the starting point of your hydraulic clutch system and the key to getting rid of that pesky air. Luckily, locating it isn’t usually too tricky.
Where to Look
In most vehicles, the master cylinder is tucked away in the engine bay, typically towards the back of the engine compartment, on the driver’s side. It’s connected to the clutch pedal through a pushrod or cable, so following that linkage is a good visual clue.

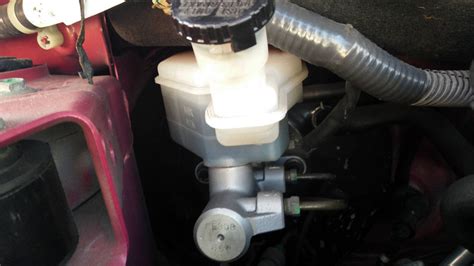

Identifying the Master Cylinder
The master cylinder is a small, cylindrical reservoir, typically made of metal or plastic. It’s usually connected to two lines: one leading to the slave cylinder (located near the clutch itself) and the other being a small reservoir hose. The reservoir holds the clutch fluid, which is usually a clear or slightly amber-colored liquid. You might see a cap on top of the reservoir, often marked with a clutch symbol or the words “Clutch Fluid.” This cap is important for checking and topping off the fluid level, a vital step before bleeding the system.
Sometimes, access to the master cylinder can be obstructed by other components in the engine bay. Don’t worry if you don’t immediately spot it. Consulting your vehicle’s owner’s manual can provide a diagram or specific instructions for your make and model. These manuals often offer clear visuals and step-by-step guides that can be incredibly helpful.
The master cylinder might also be slightly different in appearance based on your vehicle’s age and manufacturer. Some older models might have a more exposed setup, while newer vehicles often have more covers and protective components. Regardless of the age, the fundamental components – the reservoir, cap, and connecting lines – will be present.
Here’s a quick breakdown to help you identify it:
| Feature | Description |
|---|---|
| Location | Engine bay, typically driver’s side, firewall area |
| Appearance | Small cylindrical reservoir, metal or plastic |
| Connections | Two lines (one to slave cylinder, one to reservoir) |
| Reservoir Cap | Often marked with clutch symbol or “Clutch Fluid” |
Once you’ve identified the master cylinder, you’re one step closer to a smoothly functioning clutch! Remember to always consult your owner’s manual if you have any doubts. This ensures you’re following the correct procedure for your specific vehicle.
Preparing the Master Cylinder and Reservoir
Bleeding your master cylinder is a crucial step in ensuring your clutch system operates smoothly. Before you begin, gather your tools: a wrench that fits your bleeder valve, a clear plastic hose that snugly fits over the bleeder valve nipple, a container to catch the old brake fluid, fresh brake fluid (check your owner’s manual for the correct type), and ideally, a friend to help you out. Safety first! Always wear safety glasses and gloves when working with brake fluid, as it can be harmful to your skin and eyes.
Clean the Area
Brake fluid attracts dirt and grime, which can contaminate your system. Before you even touch the master cylinder, thoroughly clean the area around the reservoir cap and the bleeder valve on the slave cylinder (located on the transmission). Use a clean rag and brake cleaner to remove any grease, dirt, or debris. This will prevent contaminants from entering the system when you open it up.
Top Off the Reservoir
Locate the clutch master cylinder reservoir. It’s typically a small, clear plastic reservoir located near the firewall on the driver’s side. Carefully remove the cap. Now, take a look inside and check the fluid level. It should be at or near the “MAX” line. If it’s low, top it off with fresh brake fluid. It’s important to use the correct type of brake fluid as specified in your owner’s manual. Using the wrong type can damage the seals in your clutch system and lead to costly repairs down the line. Overfilling can also cause problems, so add fluid slowly and carefully until it reaches the appropriate level. Once topped off, replace the reservoir cap securely to prevent contamination. Keeping the reservoir topped off during the bleeding process is crucial to prevent air from getting sucked back into the system, which would defeat the purpose of bleeding the brakes in the first place. We’ll talk more about maintaining the fluid level in the next section.
Maintaining Fluid Level During Bleeding
As you bleed the system, brake fluid will be drawn out through the bleeder valve. It’s incredibly important to keep a close eye on the fluid level in the reservoir throughout the entire bleeding process. If the level drops too low and air gets sucked into the system, you’ll have to start the bleeding process all over again. Trust me, it’s much easier to just keep an eye on it! To avoid this headache, have your assistant regularly check the reservoir and top it off as needed, ensuring the fluid level never drops below the minimum line. Consistent monitoring is the key to a successful bleed and a properly functioning clutch system.
Recommended Brake Fluids
| Vehicle Type | Recommended Brake Fluid |
|---|---|
| Most Cars and Light Trucks | DOT 3 or DOT 4 |
| High-Performance Vehicles | DOT 5.1 (Not DOT 5) |
| Classic Cars | Check Owner’s Manual |
Important Note: Never mix different types of brake fluid. Always consult your owner’s manual for the specific type recommended for your vehicle.
Inspect for Leaks
Before you proceed with the bleeding process, take a moment to visually inspect the master cylinder and the connections around it for any signs of leaks. Look for any wet spots, drips, or evidence of fluid around the reservoir, the lines, and the connections. A leaking master cylinder can introduce air into the system, compromising braking performance. If you spot a leak, address it before proceeding with the bleeding process. This might involve tightening connections, replacing a faulty seal, or even replacing the master cylinder itself.
Attaching the Bleeder Hose
Getting the bleeder hose set up right is key to a smooth and successful clutch bleed. This is where you’ll be drawing out the old fluid and air bubbles, so a good connection is essential. You’ll need a clear, flexible hose that fits snugly over the bleeder screw nipple. A small diameter hose, around 1/4 inch, is usually perfect. The clarity of the hose is important so you can actually see the fluid and air bubbles moving through. This helps you track your progress and know when the system is fully bled.
Preparing the Hose
Before attaching the hose, make sure it’s clean and free of any debris. A little bit of brake fluid in the hose before attaching it can help create a good seal and prevent air from being sucked in. Just a small squirt will do the trick – you don’t want a hose full of fluid.
Securing the Connection
Now, carefully push the hose onto the bleeder screw nipple. You want a snug fit to prevent leaks and ensure all the fluid and air are directed through the hose. Wiggle it around a bit to ensure a solid connection. You don’t want the hose popping off mid-bleed, creating a messy situation and introducing more air into the system. Think Goldilocks – not too loose, not too tight, but just right. A good rule of thumb is that you should feel a bit of resistance when trying to pull the hose off the bleeder screw.
To further enhance the seal and give you extra peace of mind, consider using a small hose clamp. This will securely fasten the hose to the bleeder screw nipple, preventing any accidental disconnections. You can find these clamps at most auto parts stores. They’re typically inexpensive and provide valuable insurance against leaks and interruptions during the bleeding process.
Once the hose is securely attached, route the other end into a clear container. Partially fill this container with fresh brake fluid. Submerging the end of the hose about an inch or two below the surface of the fluid creates a one-way valve effect. This allows air and old fluid to escape through the hose but prevents air from being drawn back into the system. This is crucial for a successful bleed.
Below is a table summarizing the essential items and their purpose:
| Item | Purpose |
|---|---|
| Clear, flexible hose (1/4 inch) | Carries old fluid and air bubbles out of the system. Clarity allows for visual monitoring of the bleeding process. |
| Bleeder screw nipple | The point on the master cylinder where the hose attaches to draw out fluid and air. |
| Brake Fluid | Used to create a seal and prevent air from entering the hose; also fills the catch container. |
| Hose clamp (optional) | Provides extra security and prevents the hose from disconnecting from the bleeder screw. |
| Clear container | Collects the old brake fluid and air bubbles expelled from the system. |
Depressing the Clutch Pedal
This stage involves a bit of coordination, so having a friend lend a hand can make things smoother. If you’re flying solo, don’t worry, it’s still manageable. The goal here is to build hydraulic pressure in the clutch system, which will eventually force the old fluid (along with any trapped air) out.
Getting Ready
Before you start pushing the pedal, make sure your bleeder valve is closed tightly. This is crucial to prevent air from getting sucked back into the system. Locate the clutch pedal, and get comfortable. You’ll be depressing it multiple times.
The Pumping Process
Now, have your assistant (or yourself) firmly press the clutch pedal all the way to the floor. Hold it there. This action compresses the fluid in the master cylinder and pushes it down the hydraulic lines towards the slave cylinder and the bleeder valve.
Holding Steady
It’s vital to keep the pedal depressed fully. Any upward movement before the next step can draw air back into the system, undoing your progress. Imagine the pedal as a plunger – you need to keep it compressed to maintain the pressure.
Opening the Bleeder Valve
While the pedal is held down, have your helper loosen the bleeder valve using the appropriate wrench (usually an 8mm or 10mm). You should hear a hissing sound as air and old fluid escape. This usually only requires a quarter to a half turn. Look closely at the tubing connected to the bleeder valve; you should see the fluid flowing out.
The Fluid Check
As the fluid flows, observe its color and consistency. Initially, it might be dark and possibly contain air bubbles. As you continue the bleeding process, the fluid should become clearer and the bubbles should disappear. This is a visual cue that you’re making progress. You can also check if there is any noticeable debris in the old fluid.
Closing the Bleeder Valve and Releasing the Pedal
Once you’ve seen a good amount of fluid flow through (or after about 5 seconds), signal your helper to tighten the bleeder valve again. Only after the bleeder valve is completely closed should the clutch pedal be slowly released. This sequence prevents air from being drawn back into the system through the bleeder valve.
Repeat and Monitor Fluid Level
This process of depressing the pedal, opening the bleeder valve, closing it, and releasing the pedal is one cycle. You’ll need to repeat this cycle several times – usually between 5 and 10 – to fully bleed the system. Regularly check the fluid level in the master cylinder reservoir and top it off as needed. Letting the reservoir run dry will introduce air back into the system and you’ll have to start over.
Troubleshooting Common Issues
Sometimes, even with proper technique, air can be stubborn. If you’re still noticing a spongy clutch pedal after several bleeding cycles, you might have a persistent air bubble or a leak somewhere in the system. Here’s a handy table of common problems and potential solutions:
| Problem | Possible Solution |
|---|---|
| Spongy pedal after multiple bleeds | Check for leaks in the hydraulic lines or at the connections. Try a vacuum bleeder to draw out stubborn air. |
| Fluid level constantly dropping | Inspect for external leaks around the master cylinder, slave cylinder, and lines. |
| No fluid coming out of the bleeder valve | Ensure the bleeder valve is open enough. Check for blockages in the hydraulic lines. |
Opening and Closing the Bleeder Valve
Bleeding your master clutch cylinder is a crucial part of maintaining your vehicle’s clutch system. A key element of this process involves the careful opening and closing of the bleeder valve. This valve, located on the slave cylinder, allows trapped air and old hydraulic fluid to escape, making way for fresh fluid and restoring proper clutch function. Mastering this step ensures a successful bleed and a healthy clutch system.
Locating the Bleeder Valve
The bleeder valve is typically located on the slave cylinder, which is usually found on the transmission housing near the bell housing. It’s a small valve with a nipple-like protrusion, often covered by a rubber cap. Consult your vehicle’s repair manual for the precise location of the slave cylinder and bleeder valve, as it can vary slightly depending on the make and model of your car.
Attaching the Bleeder Hose
Once you’ve located the bleeder valve, you’ll need a clear, flexible hose that fits snugly over the bleeder nipple. This hose will direct the old fluid and air into a container, preventing a mess and allowing you to monitor the bleeding process. A good fit is essential to prevent air from being drawn back into the system. Secure the hose firmly onto the bleeder valve nipple.
Opening the Bleeder Valve
With the hose securely attached and its other end submerged in a container partially filled with brake fluid, you can now open the bleeder valve. Use an appropriate wrench (usually a flare nut wrench) to loosen the valve approximately a quarter to a half turn. This will allow the fluid and air to escape through the hose. Be careful not to over-tighten or loosen the valve excessively, as this can damage the valve.
Depressing the Clutch Pedal
With the bleeder valve open, have a helper slowly depress the clutch pedal to the floor. This action forces fluid and air out of the hydraulic system and through the bleeder hose. Hold the pedal down until instructed in the next step. Communication between you and your helper is essential for a smooth and effective bleeding process.
Closing the Bleeder Valve
While the clutch pedal is still depressed, close the bleeder valve by tightening it with the wrench. This prevents air from being drawn back into the system as the pedal is released. Make sure the valve is securely closed, but avoid over-tightening. This process of opening the valve, depressing the pedal, and closing the valve while the pedal is depressed is one cycle of the bleeding process. It usually needs to be repeated multiple times until all the air is expelled from the system. You’ll know the system is properly bled when you see a consistent stream of fluid without any air bubbles coming through the bleeder hose and the clutch pedal feels firm and responsive. The number of repetitions required can vary depending on the vehicle and the extent of air in the system. Monitor the fluid level in the master cylinder reservoir throughout the process and top it off as needed to prevent introducing more air into the system. A clear understanding of this sequence is essential for a successful bleed.
Observing the Fluid
Pay close attention to the fluid exiting the bleeder hose. Initially, you’ll likely see air bubbles mixed with the fluid. As you continue the bleeding process, the bubbles should decrease until you see a steady stream of clean fluid. This indicates that the air has been purged from the system.
Repeating the Process
Repeat the process of opening the valve, depressing the pedal, and closing the valve several times. Monitor the fluid for air bubbles. Continue until the fluid runs clear and free of bubbles.
Removing the Bleeder Hose
Once you’re satisfied that all the air has been expelled, carefully remove the bleeder hose from the valve. Wipe up any spilled fluid and replace the protective cap on the bleeder valve. Double-check for any leaks around the bleeder valve and tighten it further if necessary.
| Step | Action |
|---|---|
| 1 | Attach hose to bleeder valve. |
| 2 | Open bleeder valve. |
| 3 | Depress clutch pedal. |
| 4 | Close bleeder valve (while pedal is down). |
| 5 | Release clutch pedal. |
| 6 | Repeat steps 2-5 until air is purged. |
Repeating the Bleeding Process
Once you’ve gone through the initial bleeding process, it’s crucial to repeat it until you achieve a firm pedal feel and eliminate all air from the system. This might take several cycles, so patience is key. Don’t get discouraged if you don’t see results immediately. Air bubbles can be stubborn, and sometimes they require persistent effort to work their way out.
Checking Pedal Firmness
After each bleeding cycle, check the firmness of the clutch pedal. Depress the pedal several times and feel for consistent resistance. A spongy or soft pedal indicates the presence of air, while a firm pedal suggests the system is bleeding successfully. Remember, even a small amount of air can compromise clutch performance.
Observing the Fluid
As you bleed the system, pay close attention to the brake fluid exiting the bleeder screw. Initially, you’ll likely see air bubbles mixed in with the fluid. With each successive bleed, the number of bubbles should decrease. Clear fluid, free of air bubbles, is a good sign that you’re making progress. Keep a rag or container handy to catch the fluid as it exits.
Subsequent Bleeding Cycles
If the pedal still feels spongy or you’re still seeing air bubbles, repeat the entire bleeding process from the beginning. This includes closing the bleeder screw, topping off the master cylinder reservoir, having your assistant pump the clutch pedal, and then opening the bleeder screw again. It’s a repetitive process, but each cycle helps to push more air out of the system.
Monitoring the Reservoir
It’s essential to keep a close eye on the fluid level in the master cylinder reservoir throughout the bleeding process. As fluid is expelled from the bleeder screw, the level in the reservoir will drop. Never let the reservoir run dry, as this can introduce air back into the system, negating your efforts. Regularly top off the reservoir with fresh brake fluid, keeping it at the appropriate level as indicated on the reservoir.
Number of Repetitions
There’s no magic number for how many times you need to repeat the bleeding process. Some vehicles might only require a couple of cycles, while others might need several. The key is to continue until you achieve a firm pedal feel and see no more air bubbles in the expelled fluid. This can sometimes take up to five or even ten cycles, especially in systems that have been open for a while or have significant air contamination.
Troubleshooting Persistent Air
If, after repeated attempts, you still can’t seem to get a firm pedal, you may have a more persistent issue. This could indicate a leak in the system, a faulty master or slave cylinder, or a particularly stubborn air pocket. In such cases, consulting a professional mechanic is advisable. They have the expertise and tools to diagnose and address more complex problems.
| Possible Issue | Solution |
|---|---|
| Spongy pedal after several bleeds | Check for leaks in the hydraulic system. |
| Continuous air bubbles in the fluid | Inspect the bleeder screw for damage. |
| Fluid level drops rapidly in reservoir | Look for external leaks around the master cylinder. |
| No resistance in the clutch pedal | The master or slave cylinder may be faulty. |
Bleeding a master clutch cylinder requires patience and attention to detail. By carefully following these steps and repeating the process as needed, you can ensure a properly functioning clutch system and enjoy smooth shifting on the road.
Testing and Finalizing the Bleed
Once you believe you’ve successfully bled your master clutch cylinder, it’s crucial to confirm the absence of air and ensure the system operates correctly. This involves a series of checks and tests to guarantee your clutch engages smoothly and effectively.
Initial Pedal Feel Test
Begin by depressing the clutch pedal several times. Pay close attention to the pedal feel. A properly bled clutch system will offer firm, consistent resistance throughout the pedal’s travel. If the pedal feels spongy, soft, or exhibits any unusual give, it indicates that air remains trapped within the system. If you experience this sponginess, repeat the bleeding process from the beginning, meticulously checking for leaks and ensuring the reservoir remains topped off throughout.
Checking for Leaks
While checking the pedal feel, inspect all connections and components for leaks. Focus on the bleeder screw, the connections at the master cylinder, and the line leading to the slave cylinder. A small leak can introduce air back into the system, negating your bleeding efforts. Even a damp patch could indicate a slow leak, so thoroughly dry the area and monitor for any signs of fluid reappearing. If you detect a leak, address it before proceeding. This may involve tightening connections or replacing worn components.
Functional Road Test
The ultimate test of a properly bled clutch system is a road test. With the engine running, depress the clutch pedal fully and shift into first gear. The shift should engage smoothly and without grinding. Next, slowly release the clutch pedal. The vehicle should begin to move smoothly and predictably. Repeat this process for all gears, both upshifting and downshifting. Listen for any grinding or difficulty engaging gears. This often signals lingering air or a mechanical issue unrelated to the bleed.
Analyzing Clutch Engagement Point
During your road test, pay particular attention to the clutch engagement point. This is the point in the pedal’s travel where the clutch begins to transmit power to the wheels. Ideally, the engagement point should be neither too high nor too low. A low engagement point (close to the floor) can make smooth starts difficult, while a high engagement point (close to the top of the pedal’s travel) can lead to premature clutch wear. If you notice any irregularities in the engagement point, or if it feels significantly different than before you started the bleed, it’s worth rechecking the system and potentially repeating the bleed procedure.
Post-Test Inspection
After the road test, park the vehicle on a level surface and perform another visual inspection for leaks. Examine the area around the master cylinder, slave cylinder, and connecting lines. Look for any signs of dripping or seepage. Touch the connections to see if there is any residual fluid. Even a small amount of fluid could suggest a slow leak, so it’s essential to be thorough. Also, check the clutch fluid reservoir level again and top it off if necessary. Remember, consistent monitoring is crucial for maintaining a healthy and responsive clutch system.
Common Issues and Troubleshooting
Even after meticulously following the bleeding procedure, you might encounter some persistent issues. This table outlines some common problems and their potential solutions:
| Issue | Possible Cause | Solution |
|---|---|---|
| Spongy Pedal | Air in the system | Re-bleed the system, ensuring all connections are tight and the reservoir remains full. |
| Low Pedal | Leak in the system, worn master cylinder | Inspect for leaks and repair/replace any faulty components. Check the master cylinder for internal leaks. |
| Difficult to shift gears | Air in the system, clutch not disengaging fully | Re-bleed the system. Check the clutch cable/hydraulic system for proper operation. |
If you’ve exhausted all troubleshooting options and the issue persists, consult a qualified mechanic to diagnose and address any underlying mechanical problems.
How to Bleed a Master Clutch Cylinder
Bleeding a master clutch cylinder is a crucial maintenance procedure for ensuring a properly functioning hydraulic clutch system. Air trapped within the system can lead to a spongy or ineffective clutch pedal, making it difficult to shift gears smoothly. This process involves removing the trapped air, allowing the hydraulic fluid to effectively transmit force from the pedal to the slave cylinder, engaging and disengaging the clutch. While seemingly straightforward, attention to detail and proper technique are essential to prevent further complications and achieve optimal clutch performance.
Before beginning, gather the necessary tools, including a wrench for the bleeder valve, a clear hose, a container to collect the old fluid, and fresh brake fluid compatible with your vehicle’s specifications. Having a helper significantly simplifies the process. One person can depress the clutch pedal while the other opens and closes the bleeder valve on the slave cylinder. Careful adherence to the manufacturer’s recommended bleeding sequence is vital. This usually involves bleeding the furthest cylinder from the master cylinder first, working your way closer.
It is crucial to keep the master cylinder reservoir topped off throughout the bleeding process. Allowing the reservoir to run dry can introduce more air into the system, negating your efforts. Once the pedal feels firm and responsive, and no more air bubbles are present in the discharged fluid, the process is complete. Remember to properly dispose of the used brake fluid as it is corrosive and environmentally harmful.
People Also Ask About How to Bleed a Master Clutch Cylinder
Why is it important to bleed my master clutch cylinder?
A clutch hydraulic system relies on incompressible fluid to transmit force. When air enters the system, the clutch pedal feels spongy and may not disengage the clutch fully. Bleeding the system removes this air, restoring proper clutch function.
Can I bleed a master clutch cylinder myself?
DIY Bleeding
Yes, you can often bleed a master clutch cylinder yourself, especially with a helper. The process involves depressing the clutch pedal, opening the bleeder valve on the slave cylinder to release air and fluid, closing the valve, and then releasing the pedal. This cycle is repeated until all air is removed.
Professional Assistance
However, some vehicles have complex bleeding procedures or require specialized tools. If you are uncomfortable performing the task yourself, it’s always best to consult a qualified mechanic.
What are the signs that my master clutch cylinder needs bleeding?
Common signs include a spongy or soft clutch pedal, difficulty shifting gears, grinding noises when shifting, or the clutch failing to engage or disengage properly. If you experience any of these symptoms, bleeding the clutch system may be necessary.
What type of fluid should I use?
Always use the brake fluid type specified in your vehicle’s owner’s manual. Using the incorrect fluid can damage the seals and components of the hydraulic system. Never reuse old brake fluid.
